MORO PM60W Vacuum Pump
CFM 254 | PSI 29 | RPM 1100
- PM60W High performance, Kevlar vanes with visual inspection ports in casing
- High quality Viton oil seals – longer life than traditional oil seals
- Low rotating speed leads to longer pump life
- Oiled bearings
- Direct feed, sealed oiling system

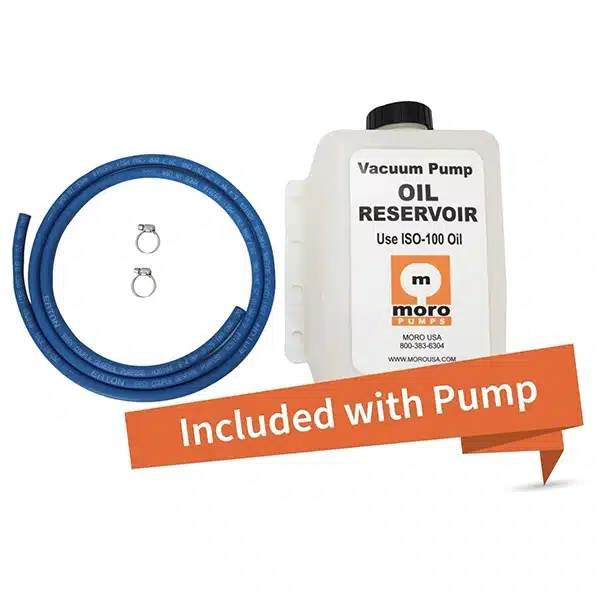

- Remote oil tank
- Quiet operation
- 3″ Hose connections with elbows
$3,637.00
Description

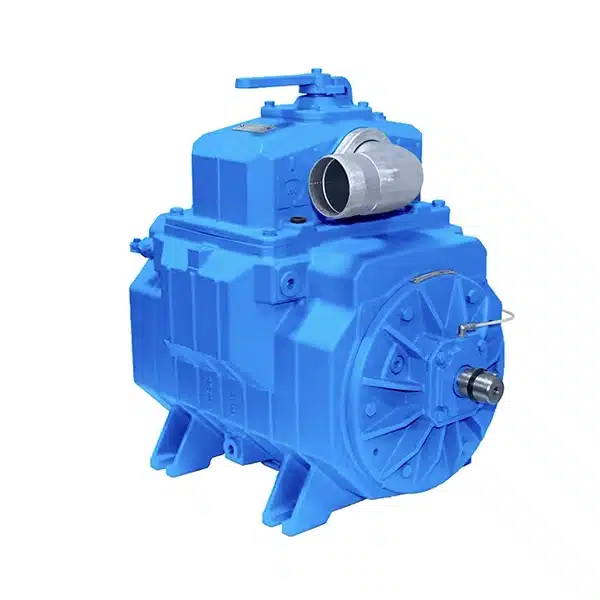

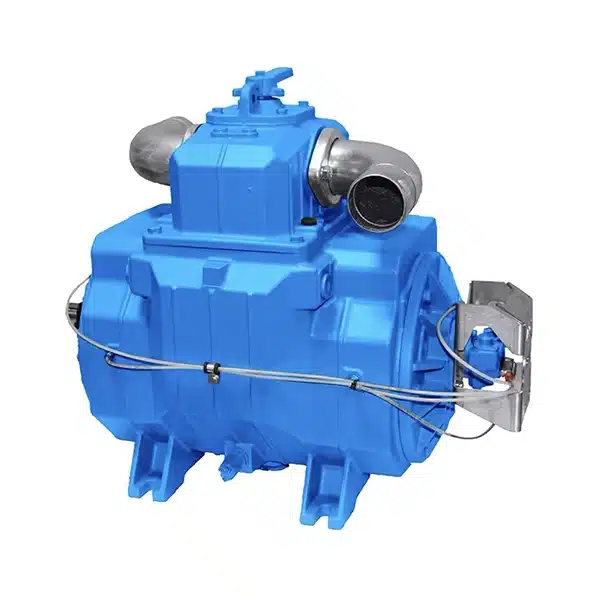

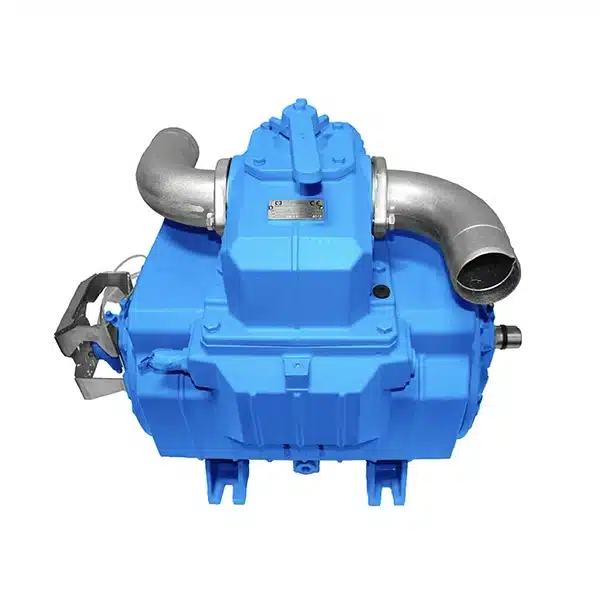

Moro PM60W Vacuum Pump
The WATER series vacuum pumps embody the most elevated standards in technology of liquid cooled suction pumps. They are designed to be used in industrial applications that have varying capability requirements. Moro offers two separate WATER Series pumps to meet these differing application needs. These pumps are crafted with a cast iron body to guarantee maximum reliability. These pumps also come with a cooling jacket to maximize heat dissipation.
The WATER Series is designed with air intake and discharge ports which have been fine-tuned to reduce both noise and heat production. The cooling jacket greatly increases heat dissipation and improves the time of pump usage under deep vacuum. These liquid cooled vacuum pumps are available with an optional water recirculating pump. These pumps are equipped with a special inspection port in the pump body allowing a visual check of the equipmentโs wear.
The vanes of this pump are made of a high-heat-resistant Kevlar material. The pump comes with the non-return and four-way valves integrated into the pump. The hose connection elbows are flanged and can be moved in any desired direction in accordance with the requirements of the vacuum pump usage.
Moro PM80W liquid cooled vacuum pump produces flow of 254.
Specifications
Additional information
| Weight | 480 lbs |
|---|---|
| Dimensions | 21 × 45 × 34 in |
| CFM | 424 |
| PSI | 29 |
| RPM | 1100 |
| Weight | 480lbs |
| Hose | 3" |
| Oil Tank Capacity | 4 Qts |
| Suggested Tank Size | 2000-4000 Gallons |
| Max. Vacuum | 28 InHg |
| Continuous Duty Vacuum | 24 InHg |
