MORO PM90T Vacuum Pump

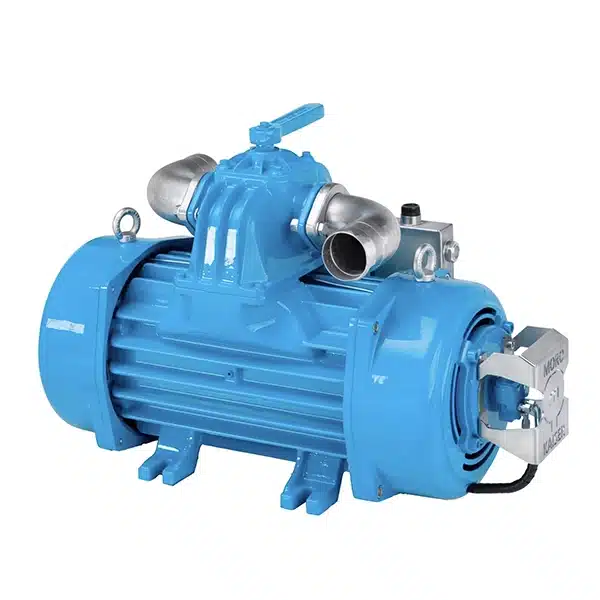

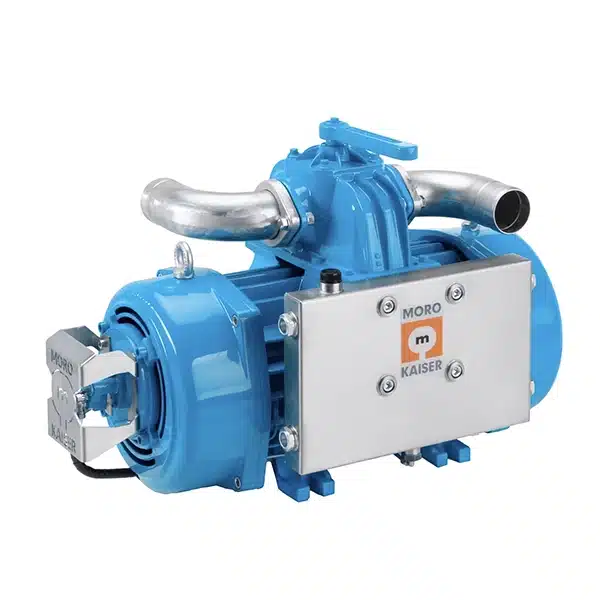

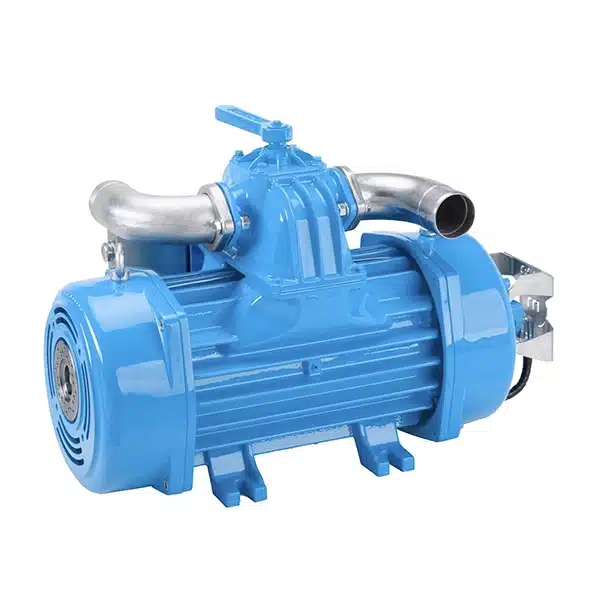

Moro PM90T Vacuum Pump

Industrial applications requiring a superior performance at high temperatures can rely on the TURBO Series of fan cooled vacuum pumps. The PM90T is a dual fan air cooled vacuum pump featuring forced convection air cooling that meets and exceeds industry standards in the technology of vacuum suction.

The PM90T delivers a best-in-class dual fan-cooled vacuum pump that delivers maximum reliability and performance, passing a 20-point inspection. The Moro Vacuum Pumps are designed specifically for use on vacuum trucks for liquid waste application and deserve their reputation for simplicity, quietness, and reliability.

The PM90T in the Turbo Series of dual fanned vacuum pumps operates at a low rotating speed and has a long pump life. The 90T offers both clockwise and counterclockwise rotation. These vacuum pumps have an efficient built in cooling system that is independent of the truck’s cooling system and designed to be used in industrial applications that have varying capability requirements.

Pump cooling efficiency is achieved with the Turbo Series, and can be measured by lower operating cost, a longer pump time, and a longer pump life. The pump’s body is constructed of cast-iron, the most efficient material for releasing heat from the pump. The increase of heat exchange is granted by the introduction of two cooling fans for a reduced cooling time. Constructed with high quality Kevlar vanes and high heat resistant Viton seals for a better resistance to high temperatures, MORO has 65 years of history delivering best in class engineered pumps and technologies.

Providing continuous pumping ability, this pump is a workhorse with integrated features. Leading with a non-return and 4-way valves integrated in the pump, and a side-mounted stainless steel oil tank, applicable both on the RIGHT and on the LEFT side. (Remote oil tank option also available.) New forced continuous closed lubrication with a piston pump, the PM90T Turbo series vacuum pump can easily change rotation (CR or CCR) by exchanging the lubrication pump and means there is no reason to open the vacuum pump and replace parts, only the lubrication pump itself.

The cast iron body efficiently release heat from the pump and the air intake and discharge are designed to reduce heat production and noise level. The TURBO Series pumps are equipped with a special inspection port in the pump body for a visual check of the equipment’s wear at any time.

This dual fan vacuum pump moves 430 CFM, operates at 29 PSI and has a 3” hose. Weighing 470 pounds, this pump features built-in lifting hooks for ease of installation and safety and comes complete with drive shaft and port connections.

Available with Remote Oil Reservoir.
